CarMover RAILS IN

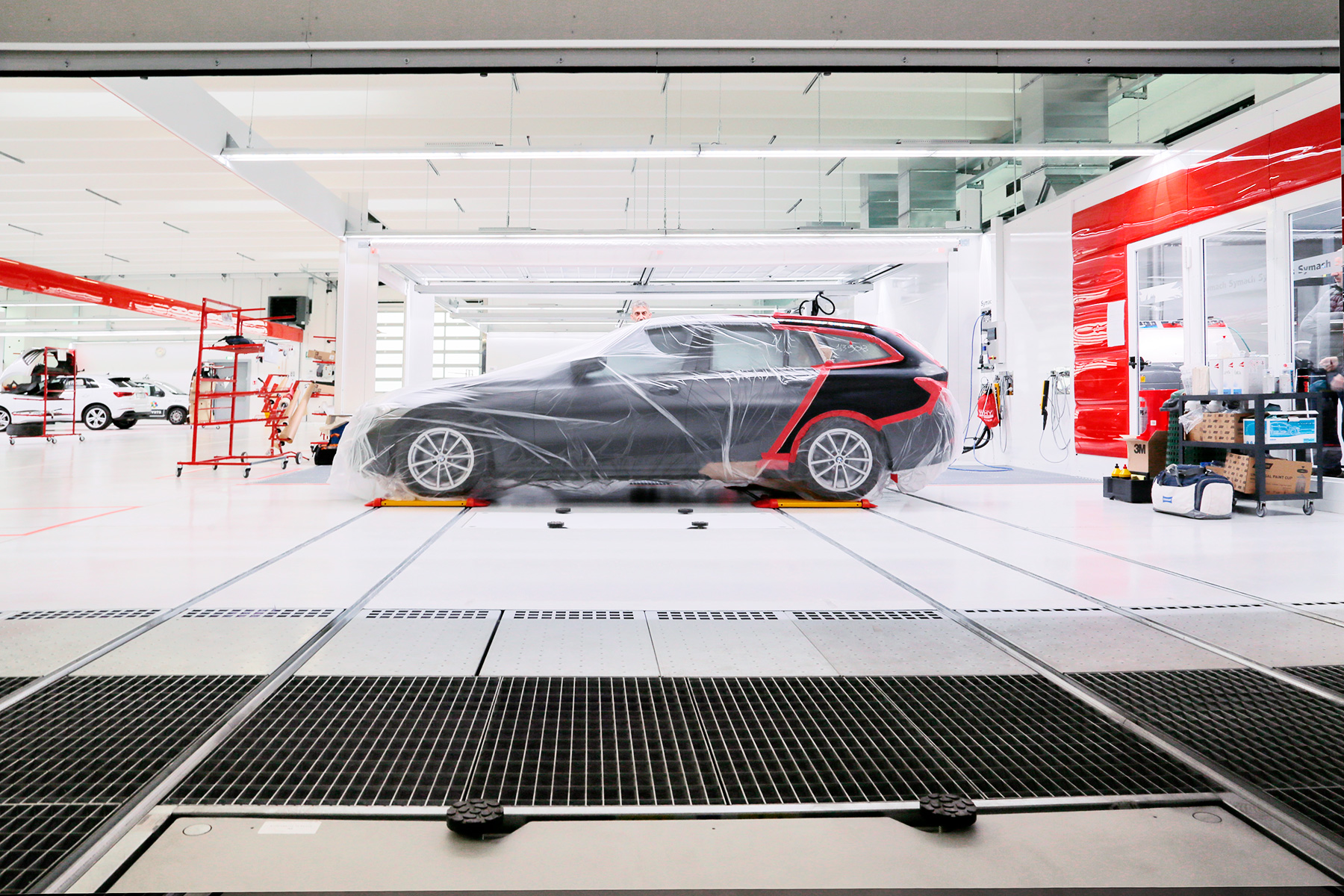

The car mover rails are triangular and inserted into the floor, where the dolly wheel slides on the apex. They are supplied with a spacer to be positioned at the junction of each subsequent module. This allows installation without possible errors because it keeps them aligned at the proper distance. The rails must be welded together inside the spaced joint.
| Rails IN - Inside the floor | ||
|---|---|---|
| Carbon steel galvanized | mm. 3 | 10 Gauge |
| Rails dimension | cm. 4.0 H 4.0 | Inc. 1.6 H 1.6 |
| Length workspace | m. 4.0 | 13.1Ft. |
| Rails line per workspace | 5 | |
| Different car position | 3 | |
| Rail length | m.3.0 | 9.8 Ft. |
| Rails pieces | 7 |
