PMR MODEL 3X2

This paint mixing room has a floor area of 6.0 m² (64.6 sq ft).

The standard configuration includes:
– White double-skinned insulated panels on the three internal sides
– Ceiling with PowerLED lights, air intake grids, and a ventilation system
– Electrical panel with inverter and deferred power supply
At the front:
– A glass door
– Two white sheet metal panels on the inside, covered with CoverTop on the outside
OPTIONALS:
– The elevated floor with grids and a metal pit.
– The ventilation system is integrated into the wall-extraction unit and stainless steel table
– The hood where the spray gun washer is located.

TECHNICAL DATA
	MANAGEMENT AND CONTROL SYSTEM
	Control box	YES
	Exhaust Wall Extraction inverter	0.37 Kw	0,5 HP
	Exhaust Hood inverter	0.37 Kw	0.5 HP
	Fan speed potentiometer	YES
	Interlocked power supply ventilation and delay	YES

	BOX COMPOSITION
	Double skin panel	9
	Glass door	1

	PMR SIZE	m.	ft.
	Internal length	3,00	9,84
	Internal width	2,00	6,56
	External width	2,20	7,22
	Internal height	2,80	9,19
	External height	3,20	10,50

	VENTILATION GROUP
OPTION	A fan integrated into the wall extraction unit	0.37 Kw	0.5 HP
OPTION	Exhaust fan Wall	1.200 mc/h	700 CFM
OPTION	Hod fan	0.37 Kw	0.5 HP
OPTION	Exhaust fan Hood	1.200 mc/h	700 CFM
	Intake filters on the roof	m. 2.0 X 0.4 *2	Ft. 6.5 X 1.3 *2

	LIGHT PowerLED
	Color fidelity	0.94 CRI
	Color Temperature	5.555 Kelvin
	Row of PowerLED	2

OPTION	FLOOR SIZE
OPTION	Metal basin	m. 0.5 X 2.0 *6	Ft. 1.6 X 6.6 *6

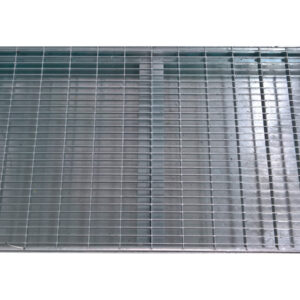

OPTION	Grid	m. 0.5 X 2.0 *6	Ft. 1.6 X 6.6 *6

	MANUFACTURING	mm	Gauge
	Double skin panels wall mm 50 pre-painted white.	1.2	16
	Galvanized sheet metal frame	2.0	12
	Galvanized sheet metal ducts	1.0	18
	Stainless steel finishes	1.0	18
