PLENUM FOR DOUBLE PREP SEMI-DOWNDRAFT- PWE 2 – with INTAKE FAN
Role in the repair process
This product is designed to perform a specific function within the repair workflow.
Its role is to support process continuity, reduce handling and contribute to predictable cycle times.
When integrated into a structured layout such as FixLine, its performance is optimized.
It can also operate as a standalone solution within a properly designed process.
💰 Starting from:
USD $48,555.00
📸 PICTURES
DETAILS

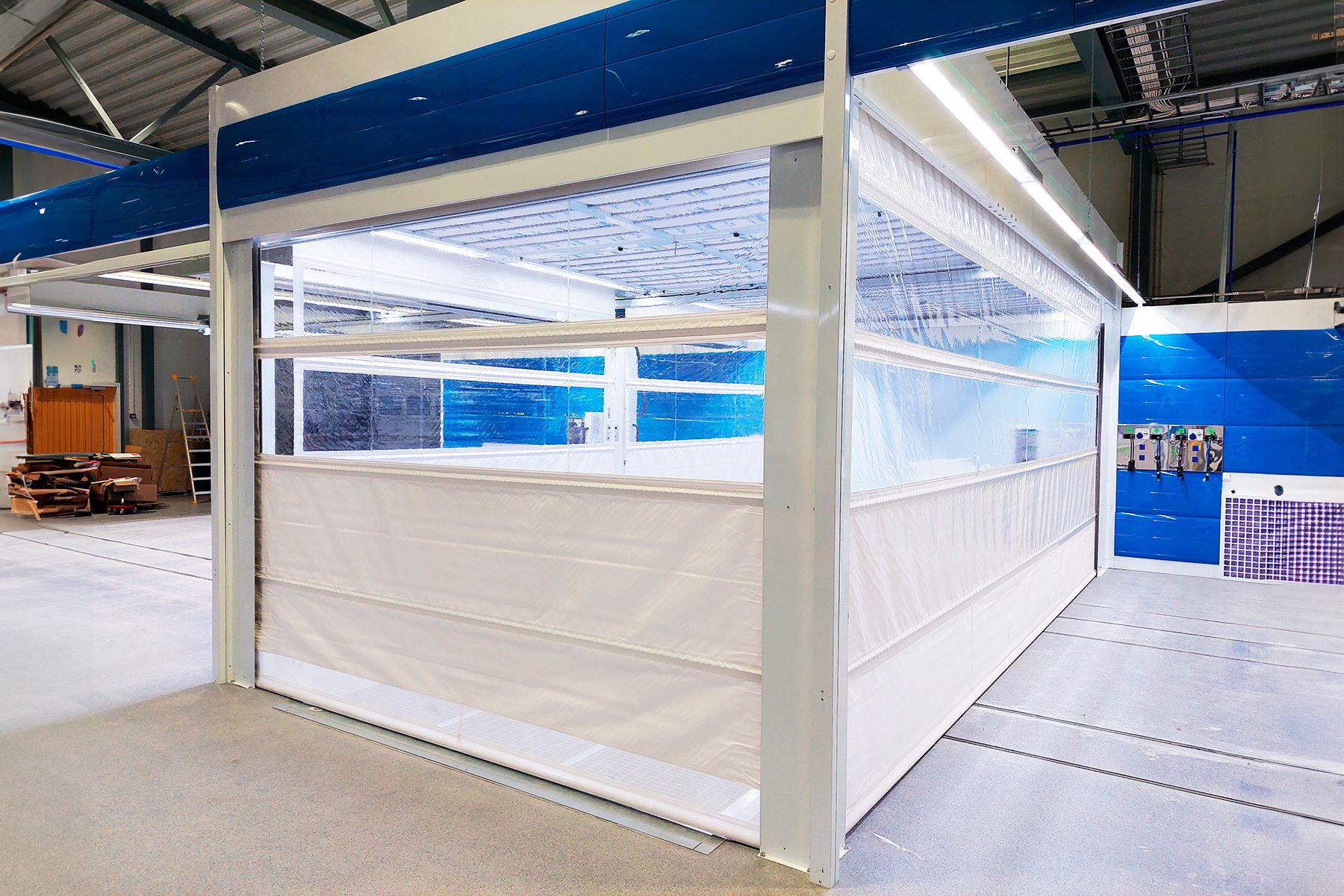

DOUBLE PLENUM FOR PREP AREA SEMY DOWNDRAFT WITH INTAKE FAN
The configuration includes:
- DOUBLE Plenum with air intake filters
- DOUBLE Two rows of PowerLED lights
- A 7.5 kW – 10 HP ventilation unit ONE GROUP SHARED FOR THE 2 PREP AREAS
- Automatic ventilation exchange system between the two zones
- Inverter control unit, PC, 7″ touchscreen
- Burner Option:
- The burner heats the zone.
The ceiling-mounted plenum with an air intake fan provides a perfect balance of air intake and extraction.
During cold weather, this solution can work in two ways:
- The first solution is to equip the preparation area with a burner.
- The second solution is to install a bypass that draws air from inside the body shop during cold weather.
This last solution works when ventilation is limited to the painting area, which, for a repair, takes just a few minutes.
This is possible because the machine is equipped with an automatic ventilation start-and-stop system linked to the spraying phase.
| PLENUM PREPARATION BAY WITH INTAKE | ||
|---|---|---|
| Size | m. 4.5 X 8.0 H 0.6 | Ft. 14.8X26.3XH2.0 |
| Intake inverter | 7.5 Kw | 10 HP |
| Intake motor | 7.5 Kw | 10 HP |
| Intake fan | 24.000 mc/h | 14.150 CFM |
PLENUM FOR DOUBLE PREP SEMI-DOWNDRAFT- PWE 2 – with INTAKE FAN
Prezzo: USD $48,555.00
DOUBLE PLENUM FOR PREP AREA SEMY DOWNDRAFT WITH INTAKE FAN
The configuration includes:
- DOUBLE Plenum with air intake filters
- DOUBLE Two rows of PowerLED lights
- A 7.5 kW – 10 HP ventilation unit ONE GROUP SHARED FOR THE 2 PREP AREAS
- Automatic ventilation exchange system between the two zones
- Inverter control unit, PC, 7″ touchscreen
- Burner Option:
- The burner heats the zone.
The ceiling-mounted plenum with an air intake fan provides a perfect balance of air intake and extraction.
During cold weather, this solution can work in two ways:
- The first solution is to equip the preparation area with a burner.
- The second solution is to install a bypass that draws air from inside the body shop during cold weather.
This last solution works when ventilation is limited to the painting area, which, for a repair, takes just a few minutes.
This is possible because the machine is equipped with an automatic ventilation start-and-stop system linked to the spraying phase.
| PLENUM PREPARATION BAY WITH INTAKE | ||
|---|---|---|
| Size | m. 4.5 X 8.0 H 0.6 | Ft. 14.8X26.3XH2.0 |
| Intake inverter | 7.5 Kw | 10 HP |
| Intake motor | 7.5 Kw | 10 HP |
| Intake fan | 24.000 mc/h | 14.150 CFM |
| ID | Name | Roll |
|---|
