DryKing 10000

Eccellente

★

★ Trustpilot

4.6 ★★★★☆

● Available

Code: DryKing 10 meters
EAN:

View all details.

PICTURES

VIDEOS

The innovative ventilation and burner system, featuring new technology supported by specialized electronics, enables the water base to dry in just 8 minutes, compared to the 30 minutes or more required by traditional booths.
The drying times of the clear lacquer are reduced by 30% compared to those in a traditional booth.

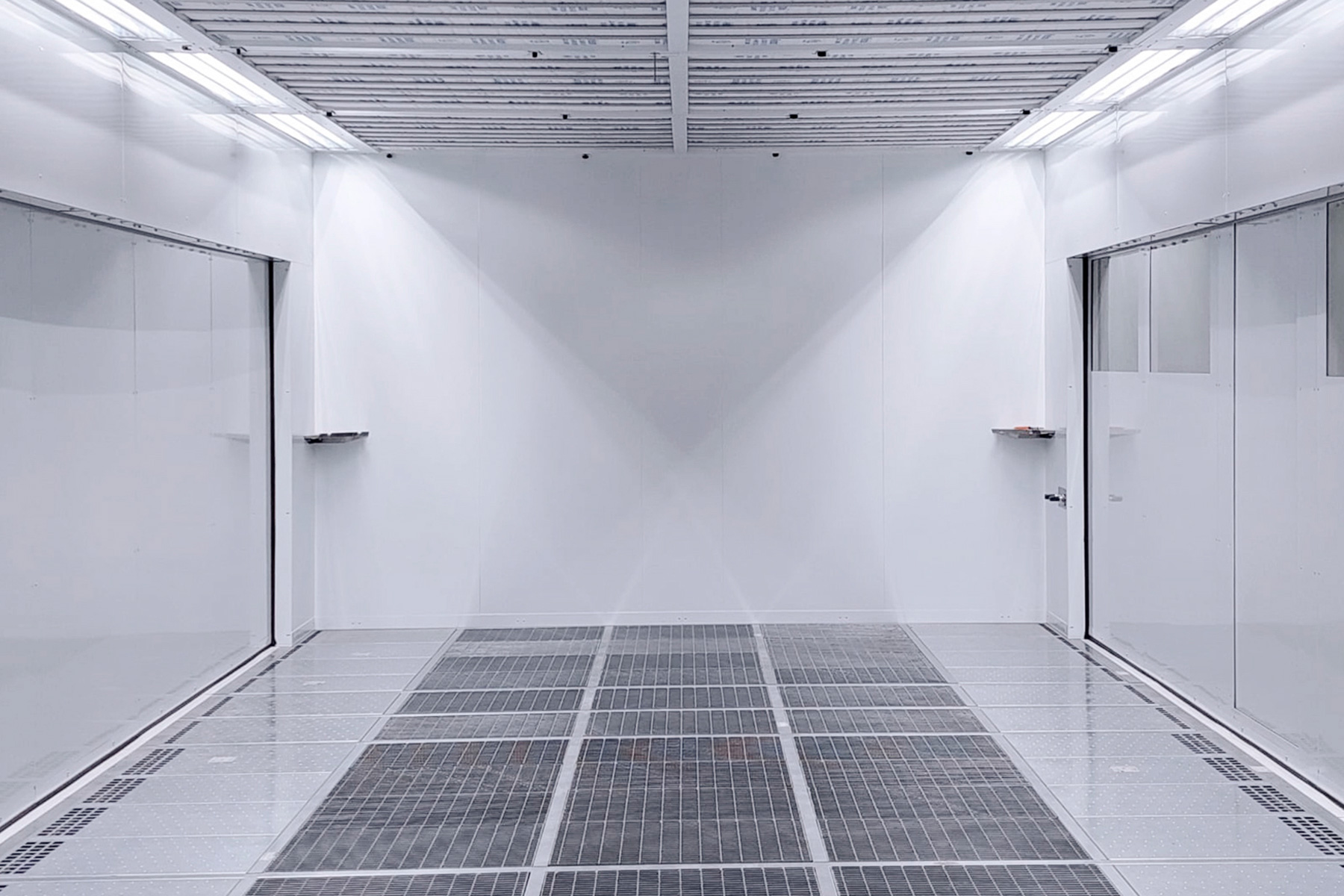

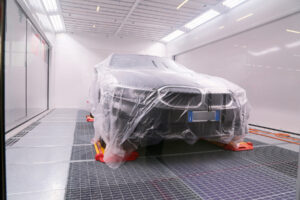

The Symach Strip PowerLED lighting system differs from a classic LED tube light because, with a unique reflector, the light is concentrated on the vertical part of the car, where the painter works most of the time.
The mix of LEDs that compose it ensures abundant light, a perfect light color, and visual fidelity to colors. Not least, it is more relaxing for the human eye than a standard LED light.

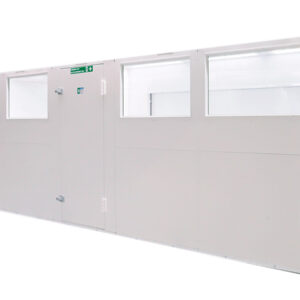

The booth can be customized with different accessories that allow you to change its size, configuration, and style.

PERFORANCE DATA
DRYING TIME COMPARISON	DRYKING	CLASSIC PAINT BOOTH
Waterborne drying time	0:08 minutes	0:30 minutes
Clear coat drying time	0:20 minutes	0:30 minutes
MANAGEMENT AND CONTROL SYSTEM
PLC	B&R

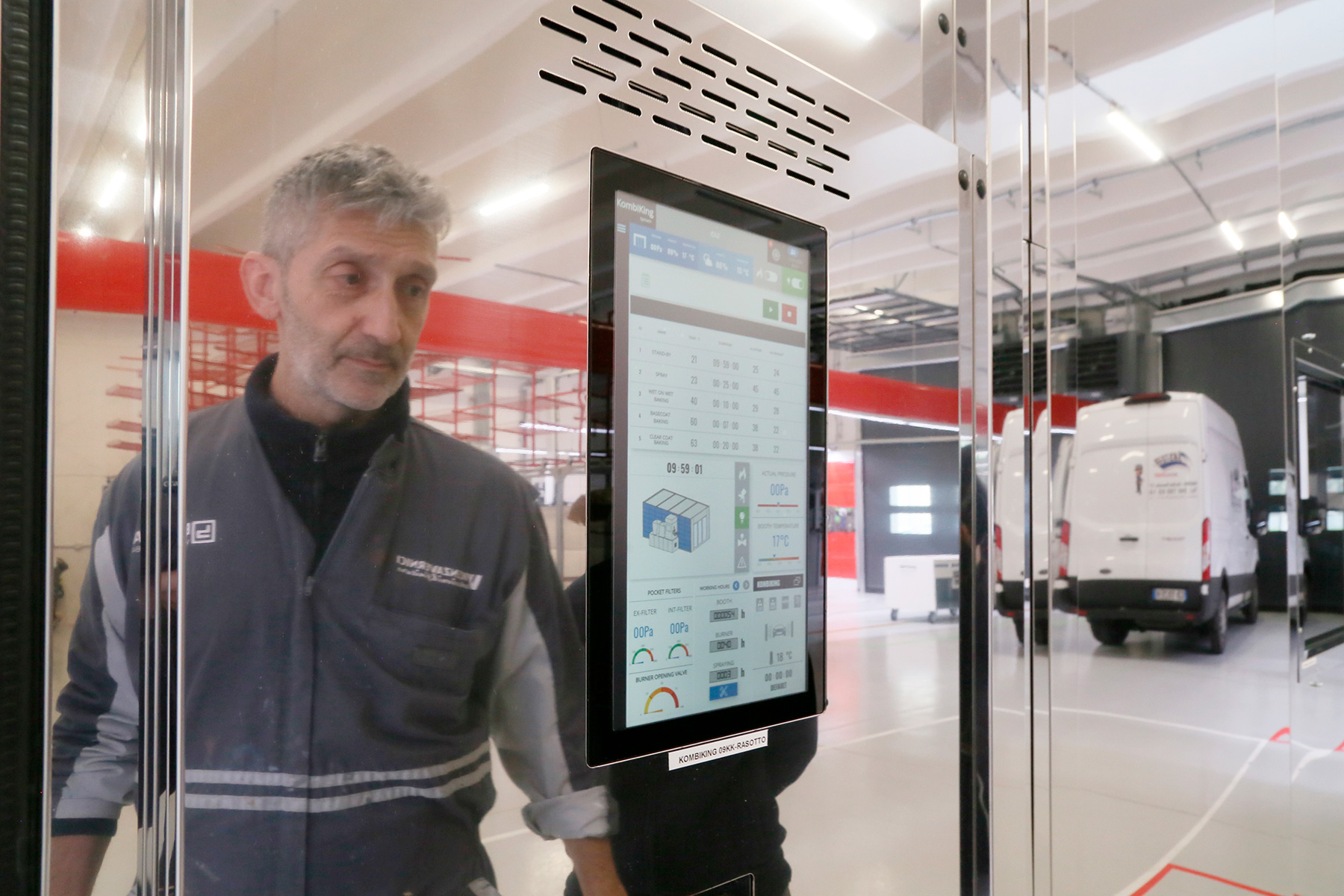

Touch screen	15" Ultra HD
Intake inverter	11 kW - 15 HP
Exahust inverter	11 kW - 15 HP
Internal temperature thermostat	YES
External temperature thermostat	YES
External humidity detector	YES
Intake pressure sensor	YES
Extraction pressure sensor	YES
Intake pocket filter clogging sensor	YES
Extraction pocket filter clogging sensor	YES
CUSTOMIZABLE CONFIGURATION
Drying program WET ON WET SEALER	Configurable drying program
Dring program WATERBORNE	Configurable drying program
Drying program CLEAR	Multiple configurable program
Colling down program	Automatic with configurable time
Spraying program	Ventilation with automatic activation and shutdown
Stand-buy program between various work phases	Automatic start and stop
SELF-DIAGNOSIS AND MAINTENANCE AND CONFIGURATIONS
Manage its maintenance activity with alarms and sending messages
Self-diagnosis in case of an anomaly with a tutorial for resolution
Configurable overpressure or underpressure painting
Automatic cabin shutdown at the end of the shift with configurable time
Remote assistance module via ethernet
Connection to the REMO portal for maintenance and usage tutorials and maintenance scheduler
From the REMO platform, records of the painting jobs to be done and those completed can be sent and received.

TECHNICAL DATA
	DIMENSION	METER	FEET
	Internal length	10,00	32.90
	External length	10,20	33.50
	Internal width	4,50	14,76
	External width	4,70	15,42
	Internal height	3,00	9,84
	External height	3,70	12,14
OPTION	Internal height	3,50	11,48
OPTION	External height	4,20	13,78

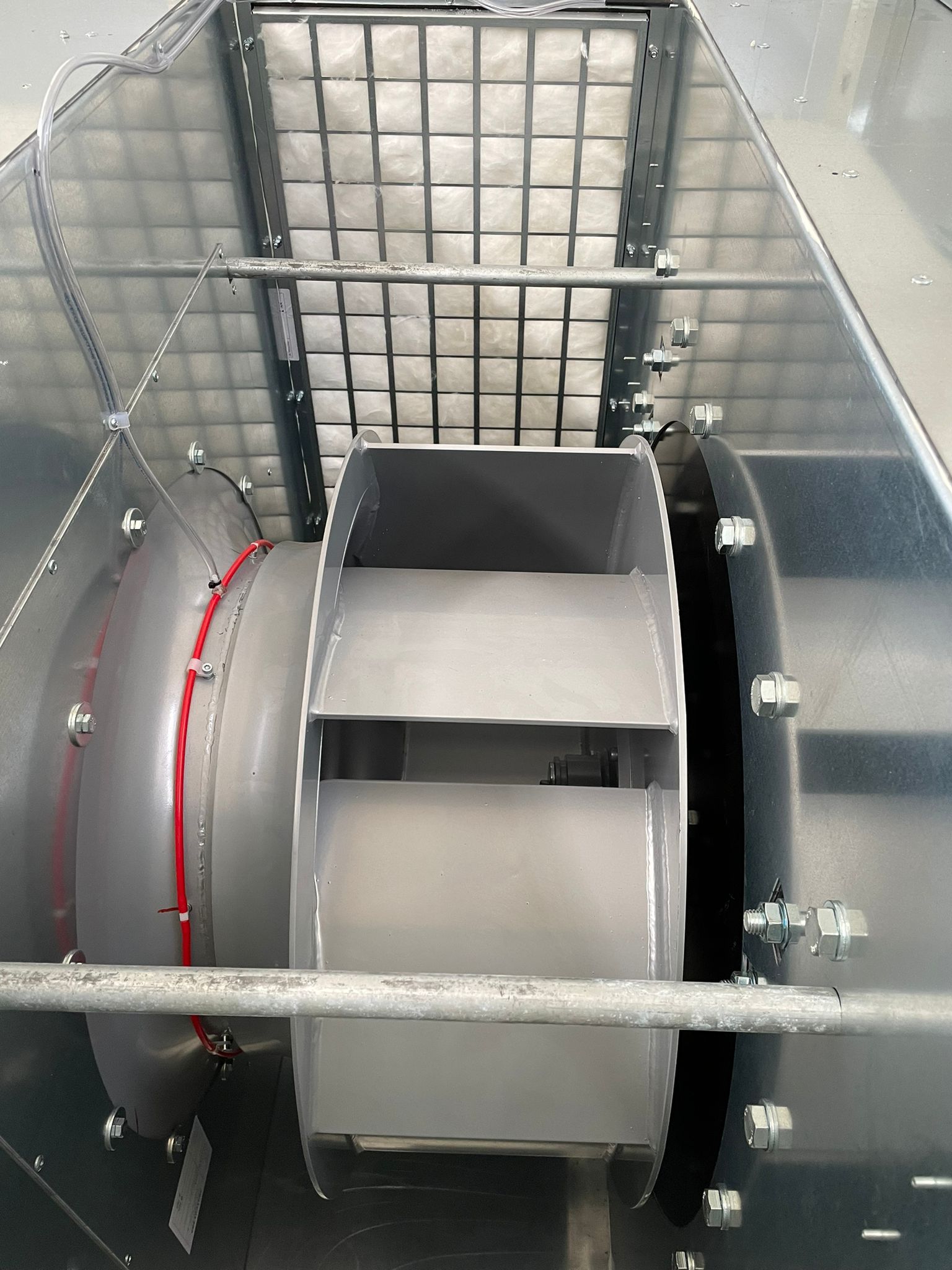

	VENTILATION GROUP	METER	FEET
	Length	4,00	13,12
	Width	1,30	4,27
	Space needed for filter changes	0,70	2,30
	Rear positioning	YES	YES
	Side positioning	YES	YES
		kW	HP
	Intake motor	11	15
	Extraction motor	11	15
		Mc/h	CFM
	Intake fan	34.000	20.050
	Exhaust fan	34.000	20.050
	BURNER	kW	BTU
	Burner	200	730.000
OPTION	Burner	300	1.100.000
	Fuel	NATURAL GAS - LPG
	LIGHT STRIP LED
	Color fidelity	0.94 CRI
	Color Temperature	5.555 Kelvin
	POWERLed 3 rows on the Right and Left	2.000 Lux	185 Ft. Candle
OPTION	POWERLed 4 rows on the Right and Left	2.500 Lux	232 Ft. Candle
	BASEMENT	Grid load Kg.	Grid load Lb.
	Car wheel grid load	700,00	1.543,50
OPTION	Commercial vehicle wheel grid load	800,00	1.764,00

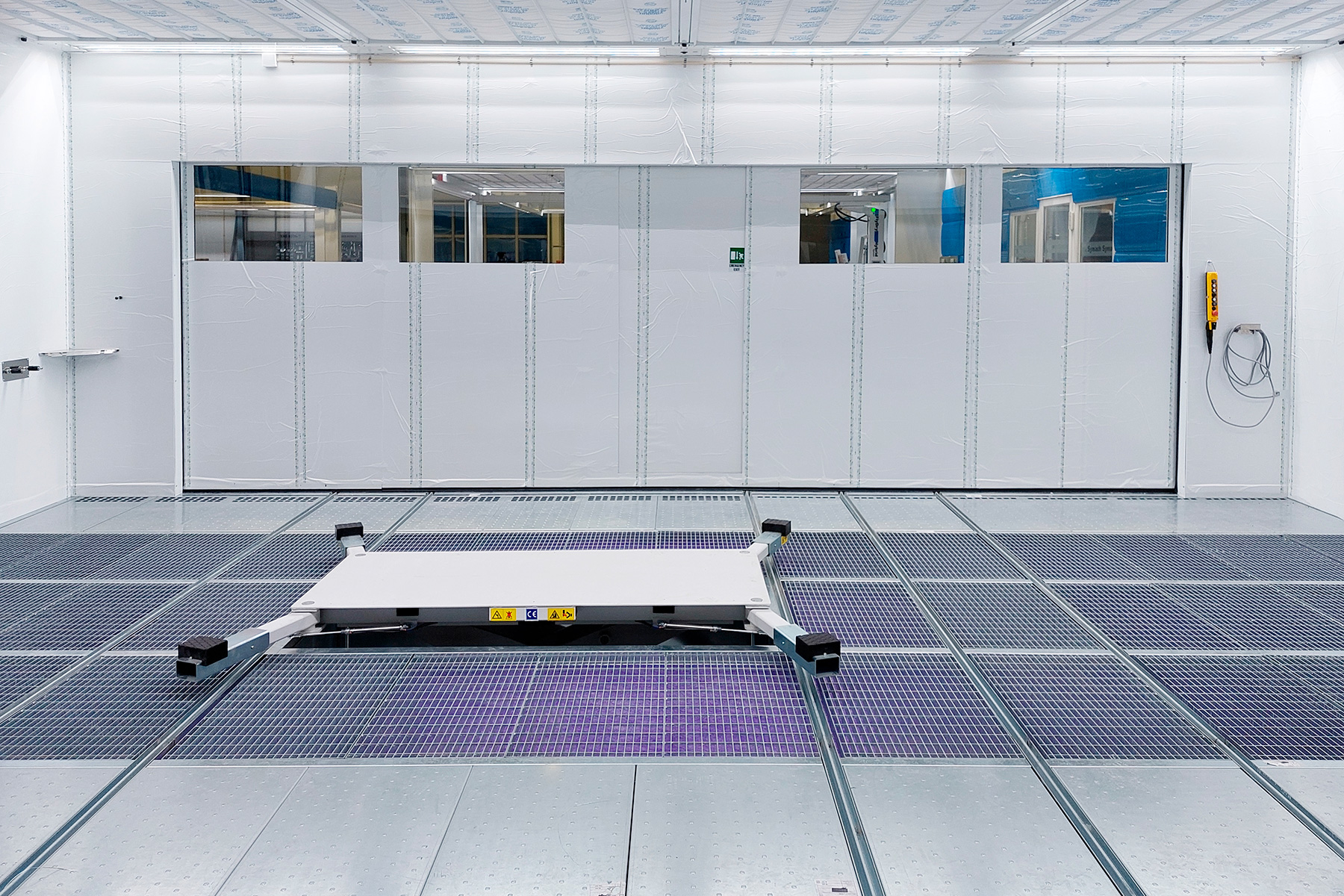

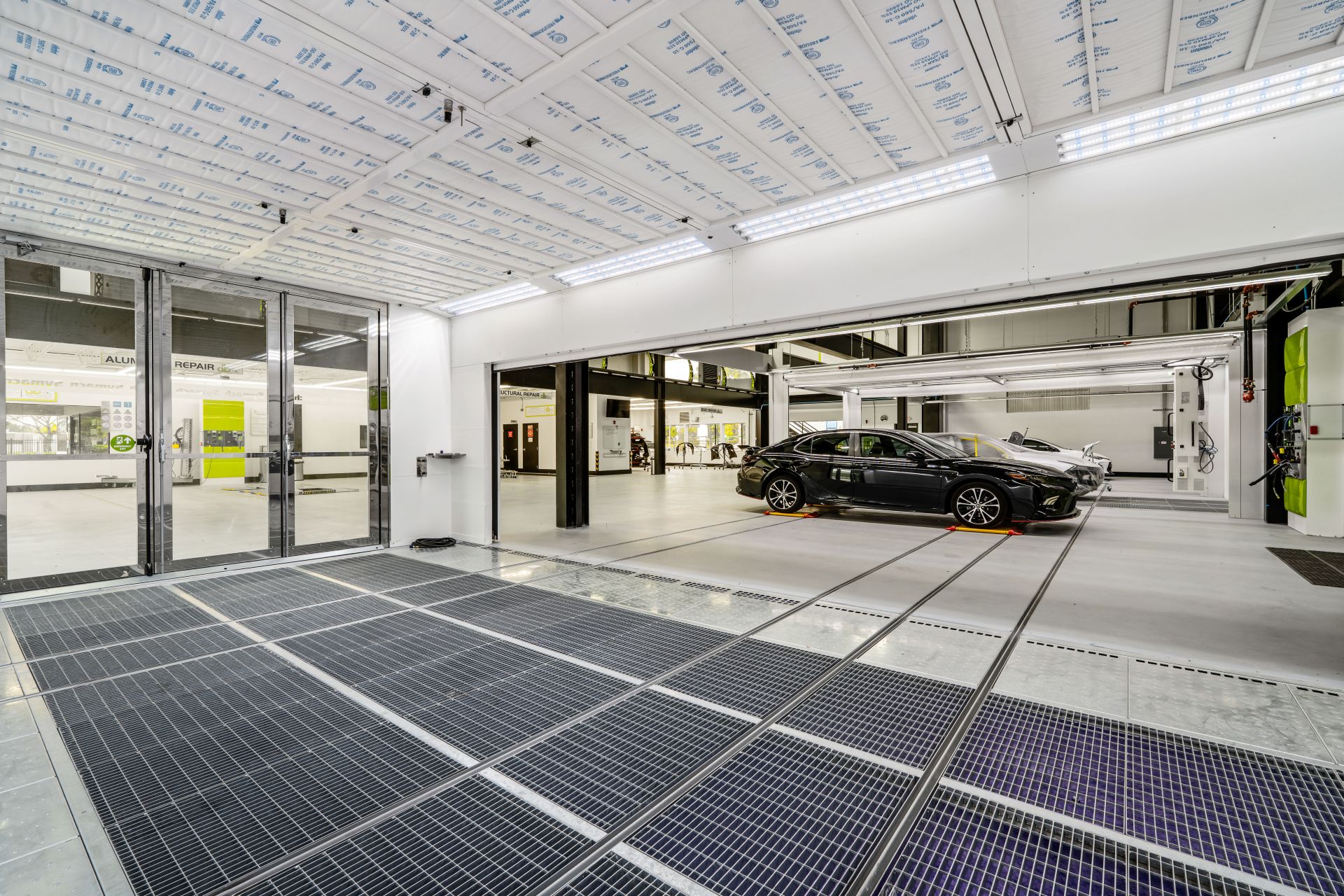

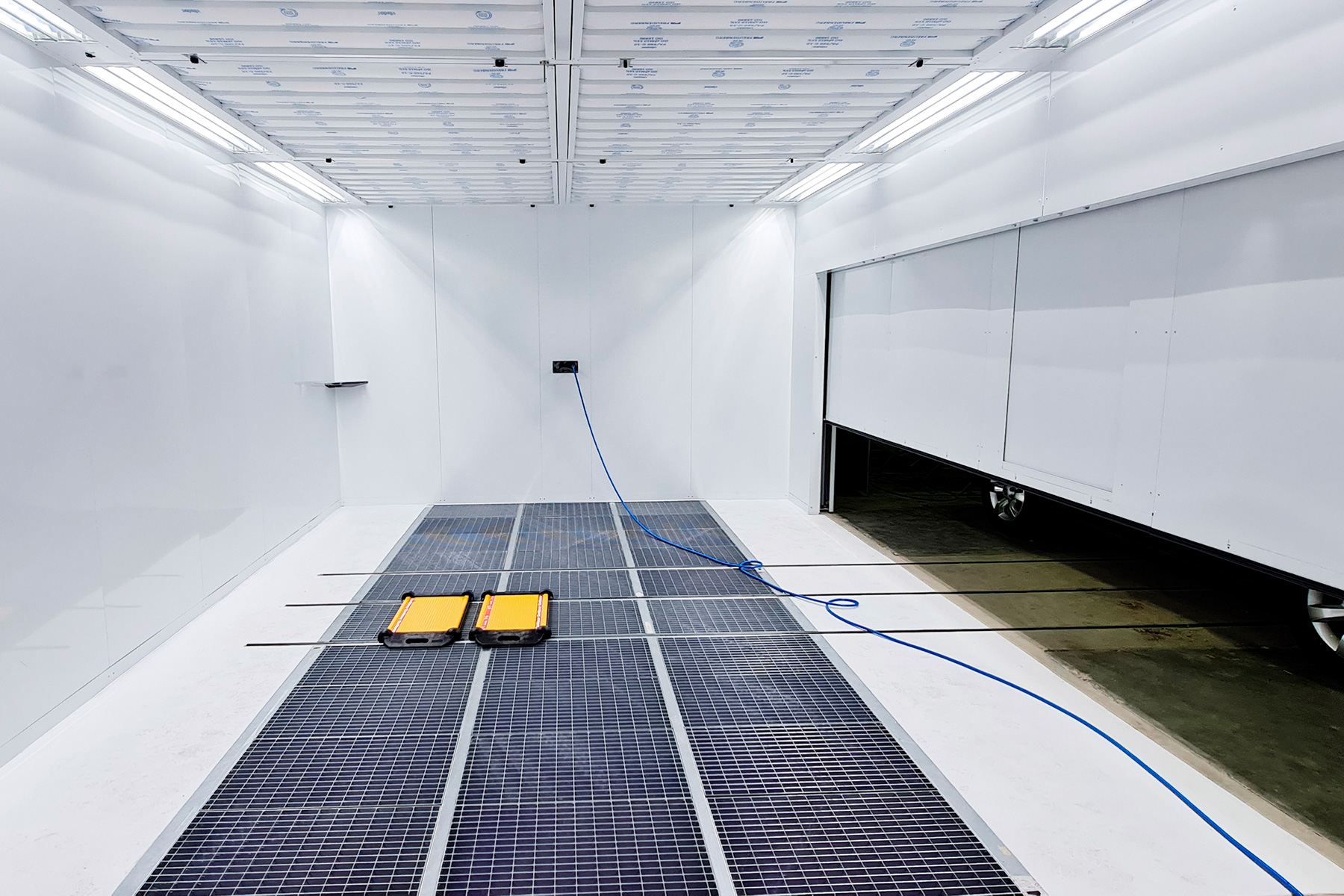

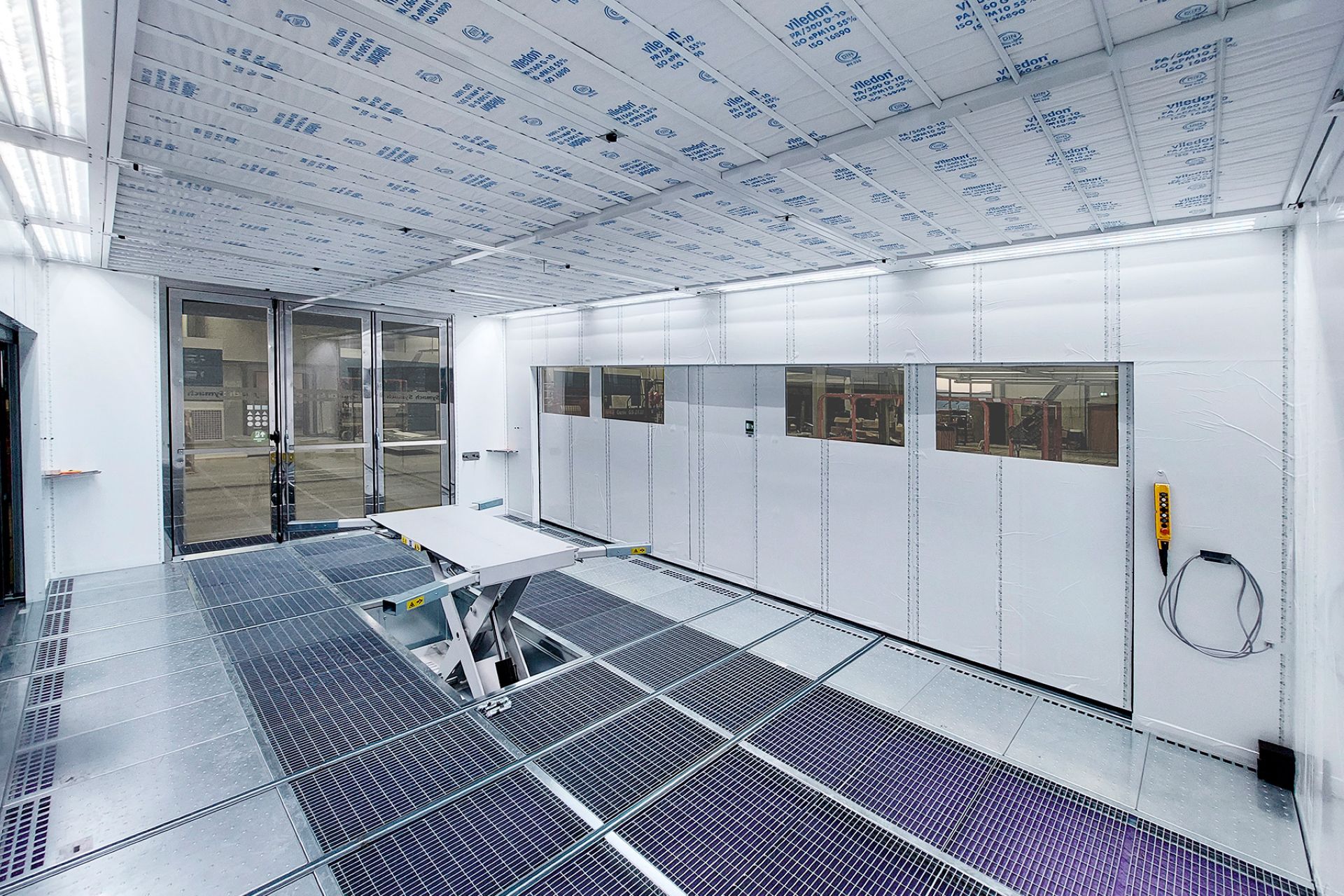

	Floor with three rows of grids	YES	YES
OPTION	Floor with five rows of grids	YES	YES
	Pit depth	0.65 m.	2.13 Ft.
OPTION	Raised floor	0.45 m.	1.48 Ft.
	MANUFACTURING	mm.	Gauge
	Sandwich panels wall mm 50 pre-painted white.	1.2	16
	Galvanized sheet metal frame	2.0	12
	Galvanized sheet metal ducts	1.0	18
	Ventilation group galvanized sheet metal	3.0	8
	Stainless steel finishes	1.0	18
	FILTERS	Mq.	Sq. ft.
	Plenum filter	26.0	279.8
	Paint stop floor filter 3 rows of grids	20.0	215.3
	Paint stop floor filter 5 rows of grids	35.0	376.7
	Poket filter Intake and exauste	12.0	129.2
