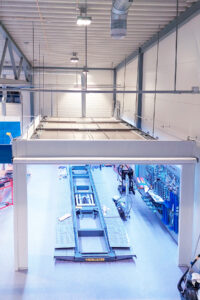

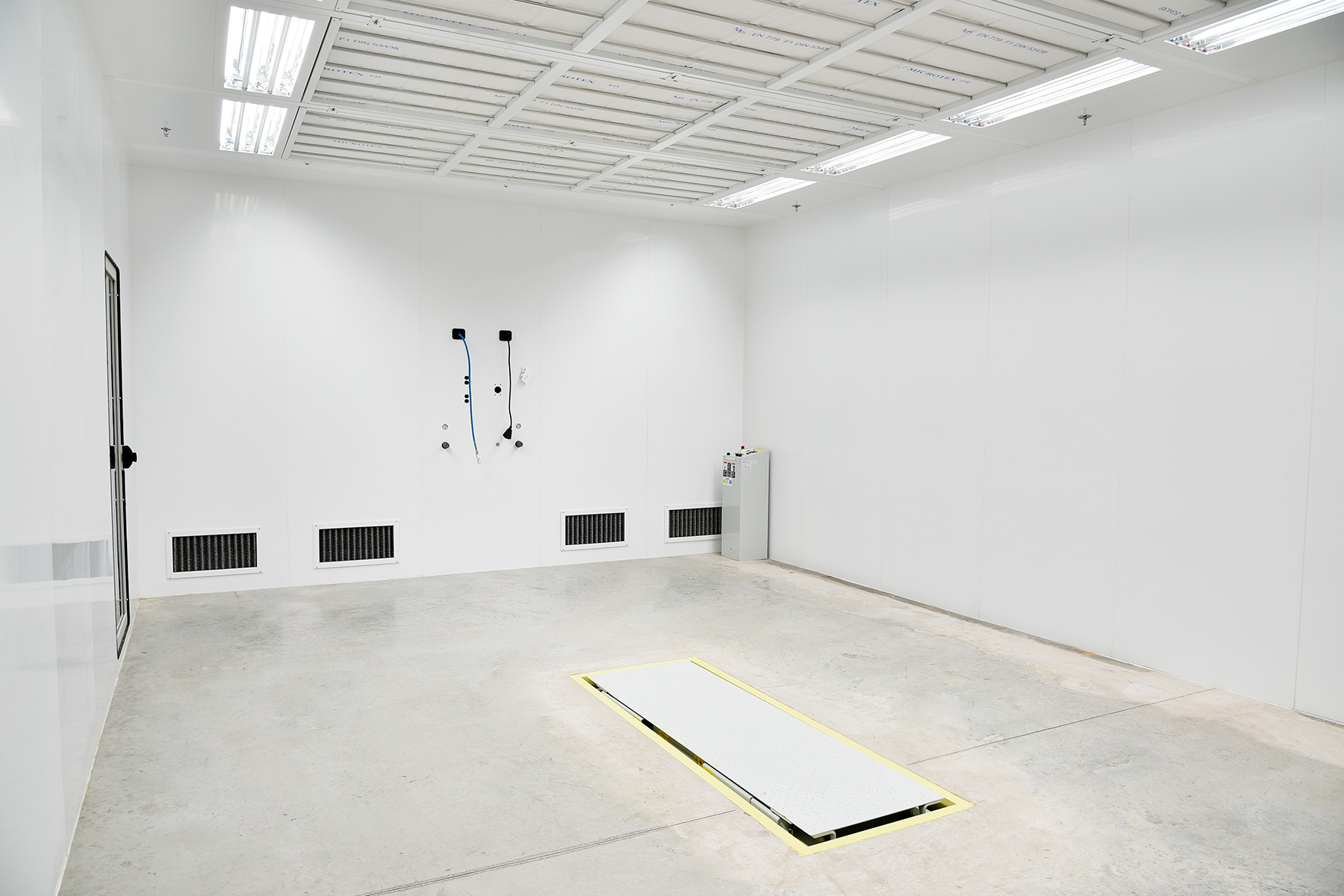

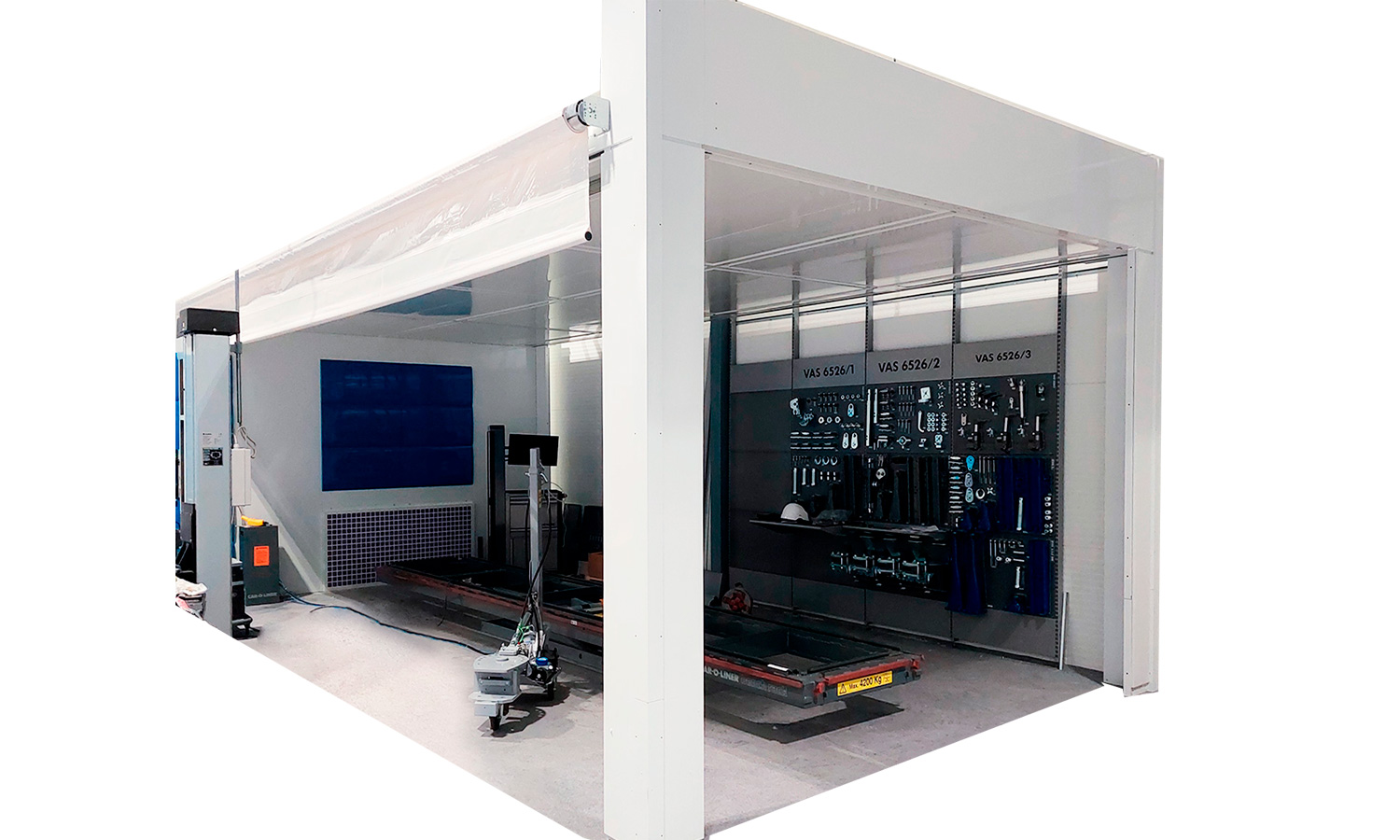

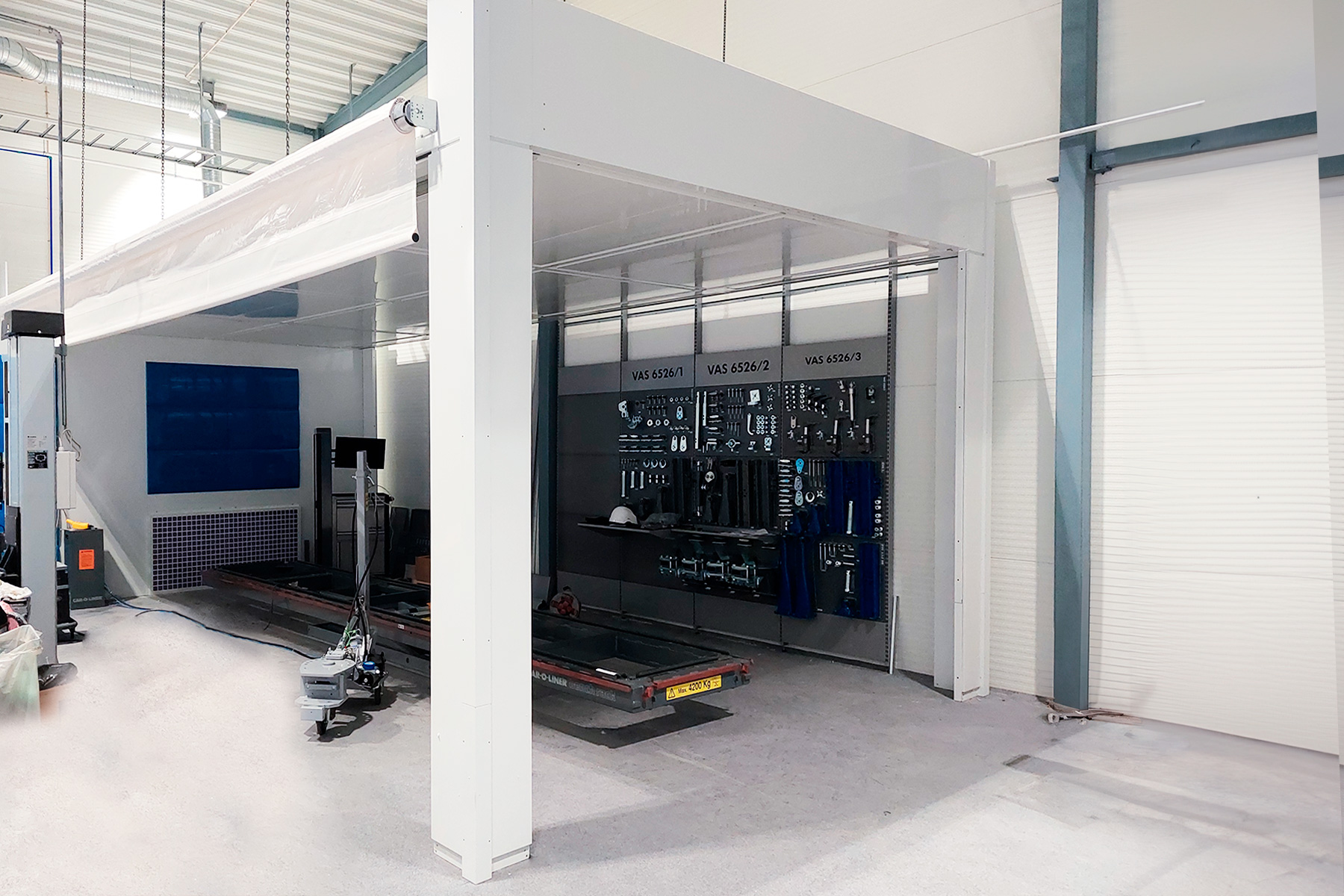

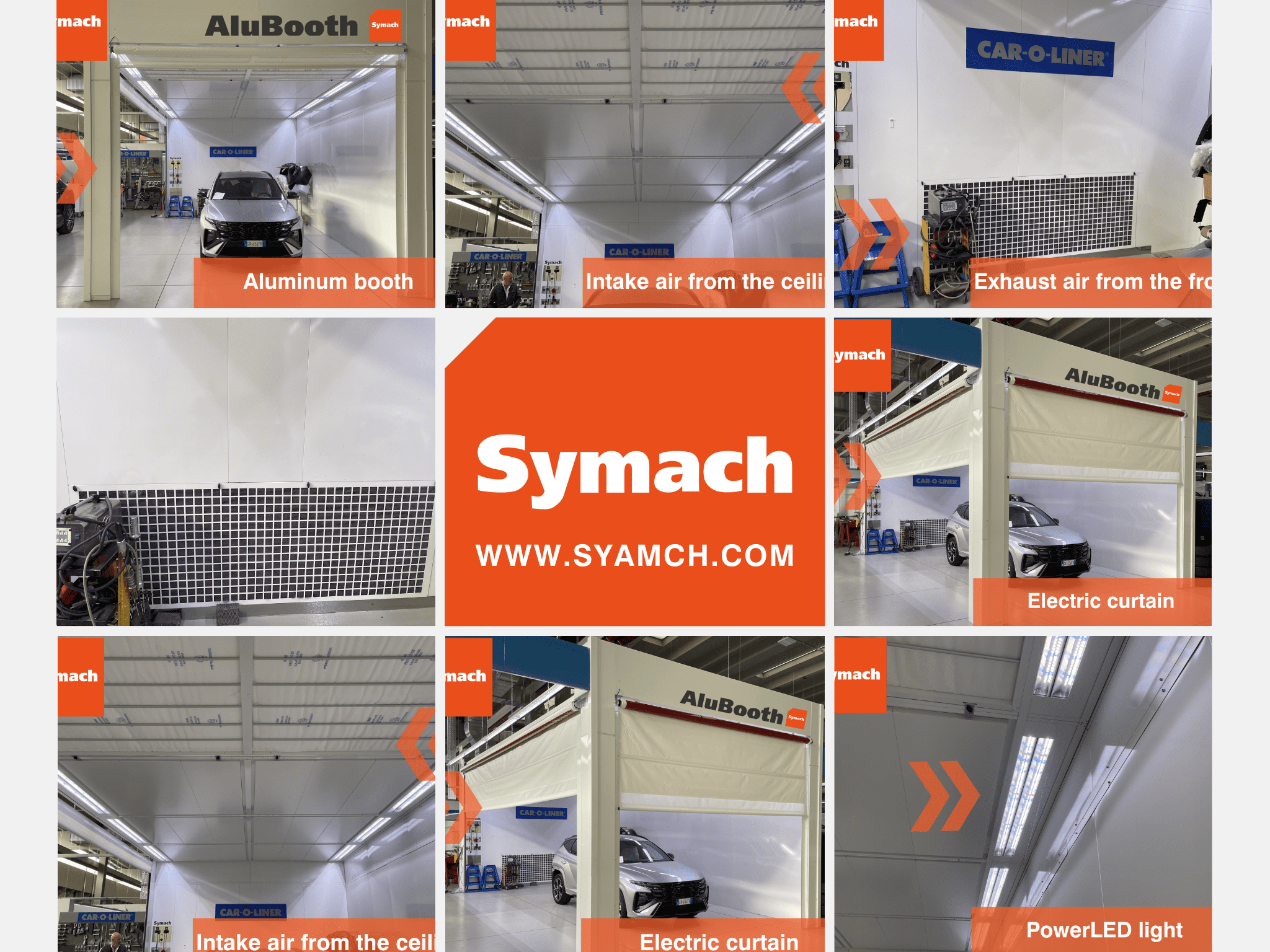

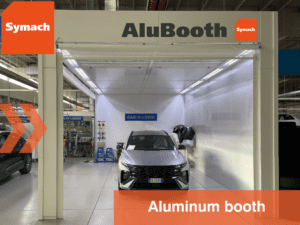

The aluminum booth 10000 – m 10 (ft 33) Long

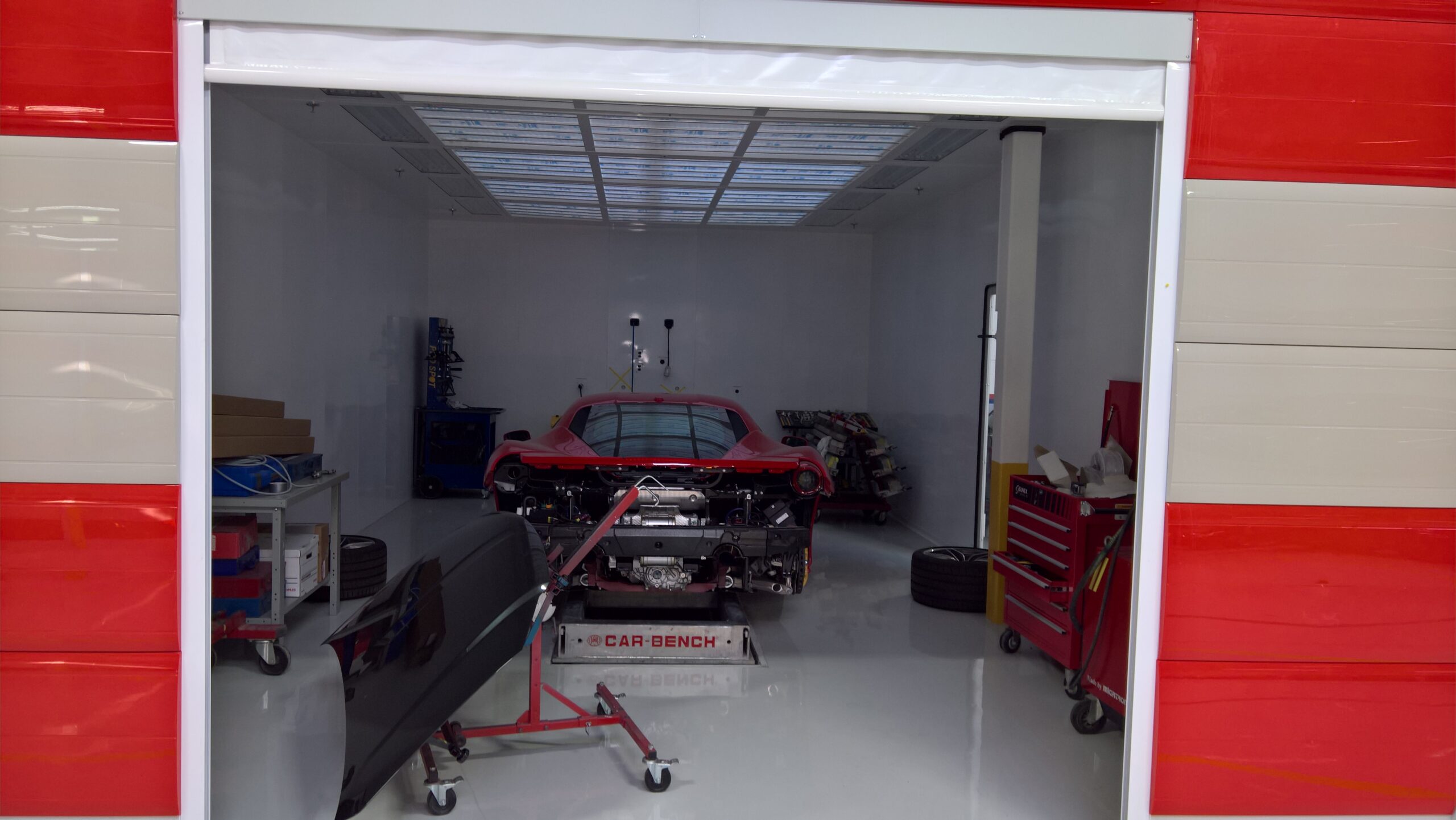

It is used to repair aluminum cars, avoiding contamination from other metalwork in the surrounding work areas.

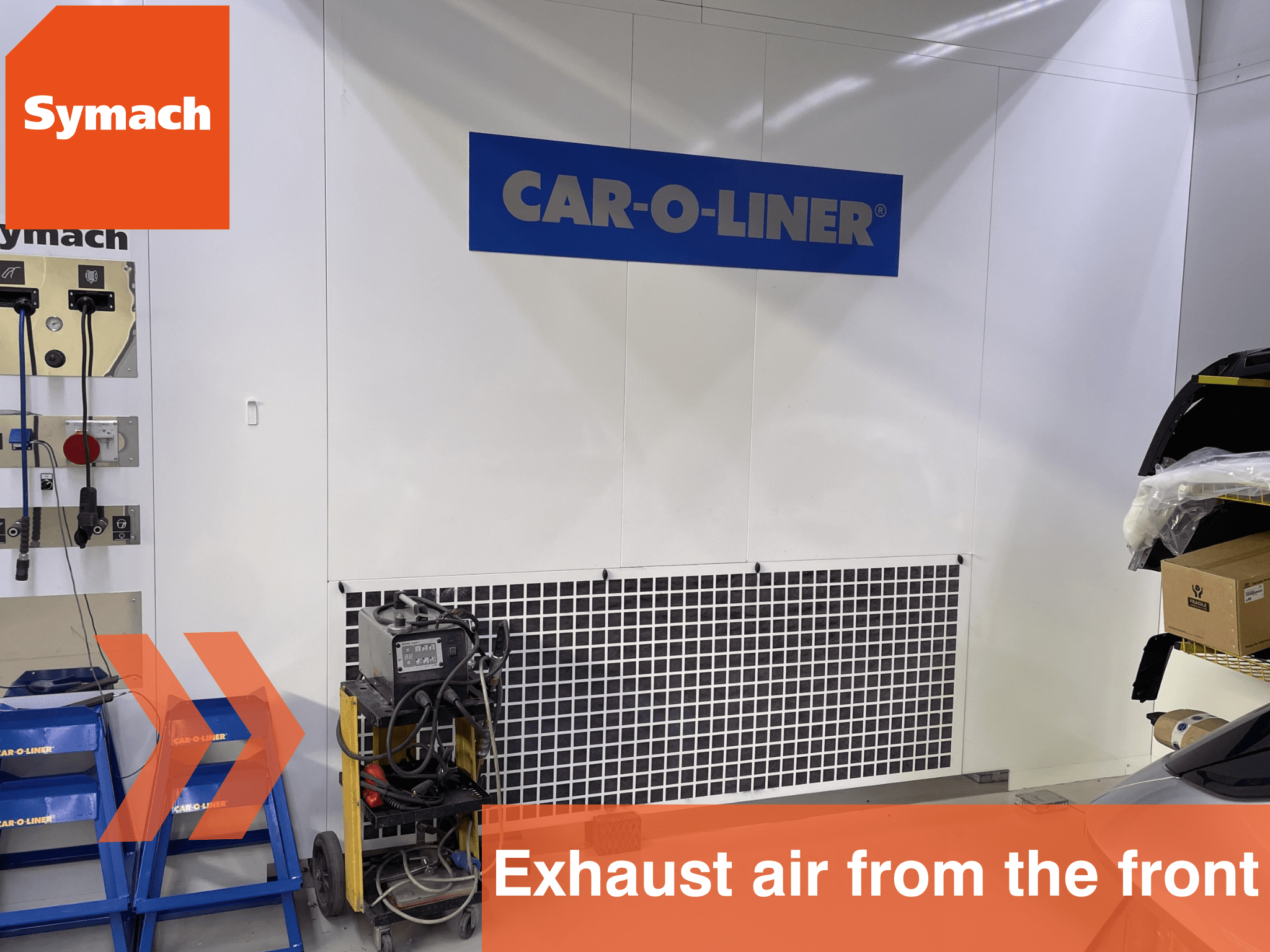

A fan with an exhausted grid at the front of the booth allows the removal of gases produced by welding and grinding aluminum.

Our solution enables you to customize the wall configuration between an electric curtain or a metal wall panel, allowing the booth to transform from closed to open for other repair work when no aluminum cars are available.

Standard configuration:

Rear extraction wall and fan
Ceiling
Frontal open wall

Note:

The sides can be configured with: Electric curtains, manual curtains, or metal wall double skeen

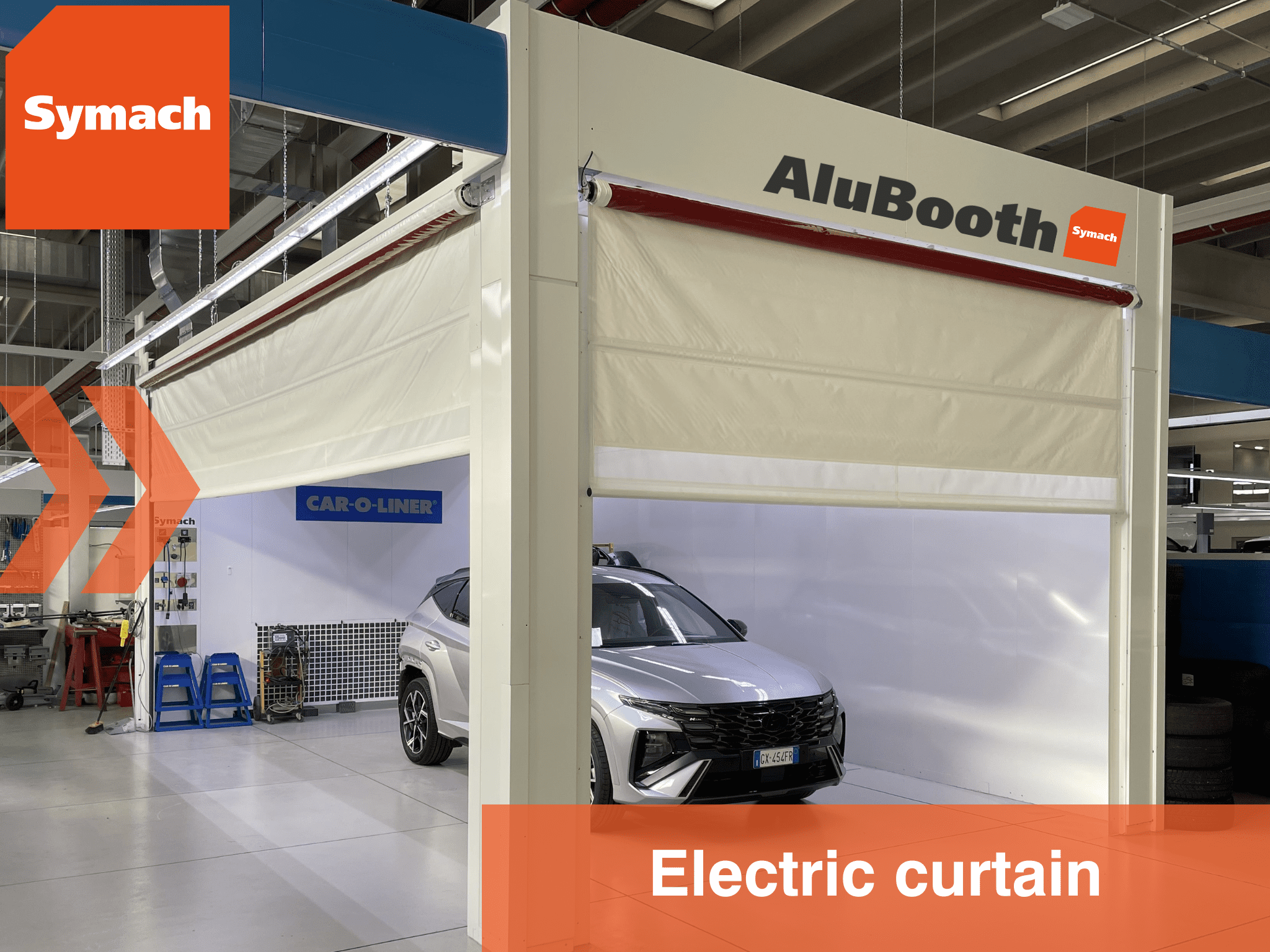

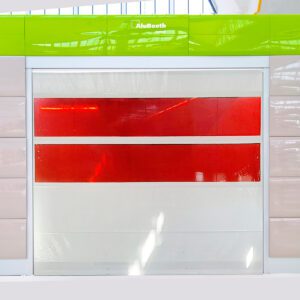

The frontal open can be configured with an electric curtain or a manual curtain

TECHNICAL DATA
MANAGEMENT AND CONTROL SYSTEM
Control box
Speed control	Potentiometer
Exhaust fan Inverter	2.2 Kw	3.0 HP
COMPOSITION AND SIZE
Fume grid frontal extraction	m. 2.5 X 1.3	Ft. 8.2 X 4.3

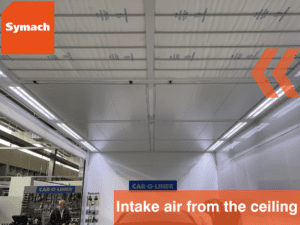

Ceiling filter	m. 4.5 X 2.0	Ft. 14.8 X 6.6
Double skin panel	5
Length external	10,70 m.	35,10 ft.
Length internal	10.00 m.	32,80 ft.
Width	5,00 m.	16,41 ft.
Height	3,50 m.	11,48 ft
VENTILATION GROUP
Extraction fan power	2.2 Kw	3.0 HP
Extraction fan air speed	8.000 mc/h	4.700 CFM
Extraction air filter size	m. 2.5 X 1.3	Ft. 8.2 X 4.3

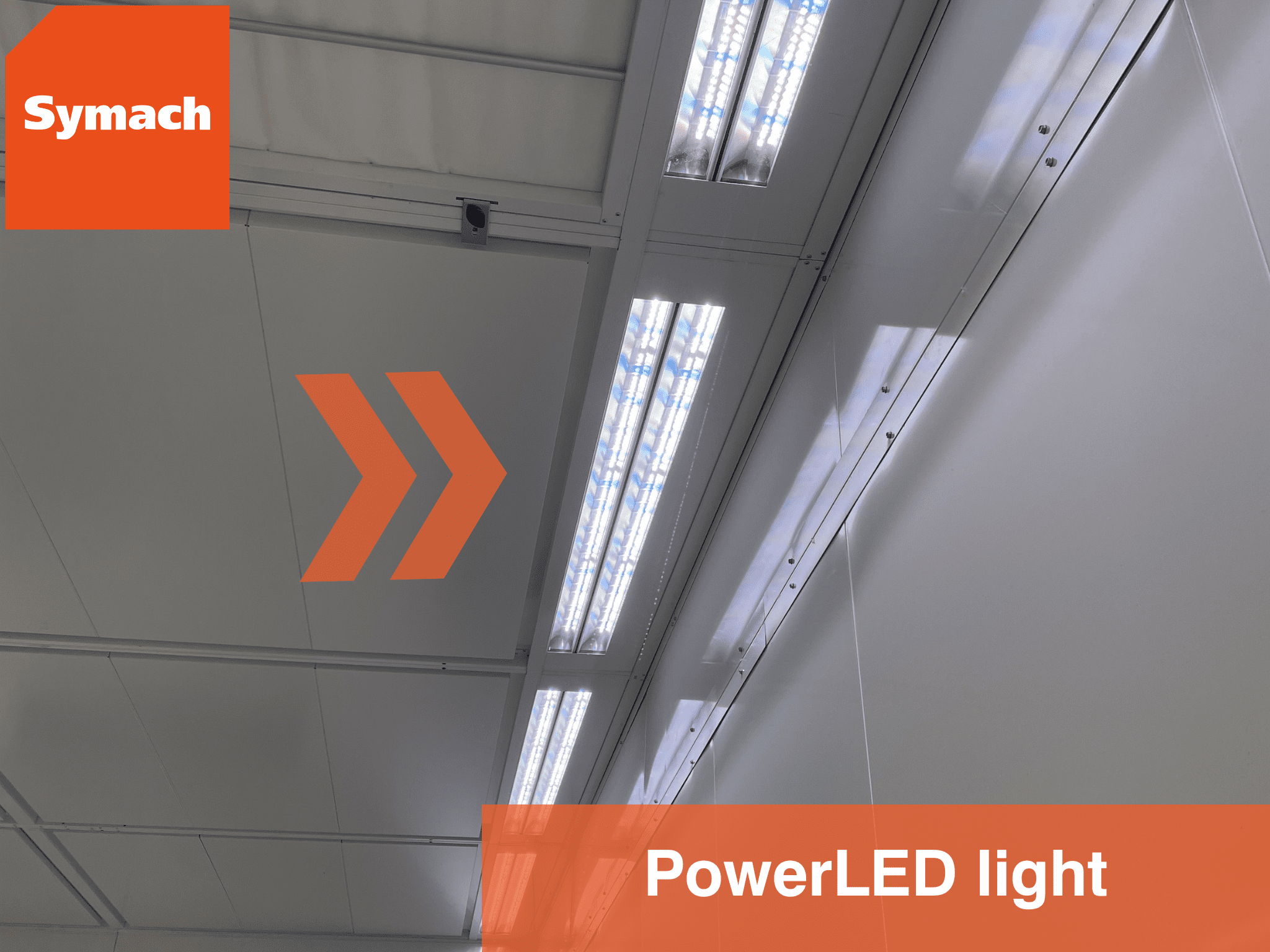

LIGHT PowerLED
Color fidelity	0.94 CRI
Color Temperature	5.555 Kelvin
POWERLed 1 rows on the Right and Left	900 Lux	84 Ft. Candle
POWERLed 2 rows on the Right and Left	1500 Lux	140 Ft. Candle
MANUFACTURING	mm.	Gauge
Double skin panels wall mm 50 pre-painted white.	1.2	16
Galvanized sheet metal frame	2.0	12
Galvanized sheet metal ducts	1.0	18
Stainless steel finishes	1.0	18
